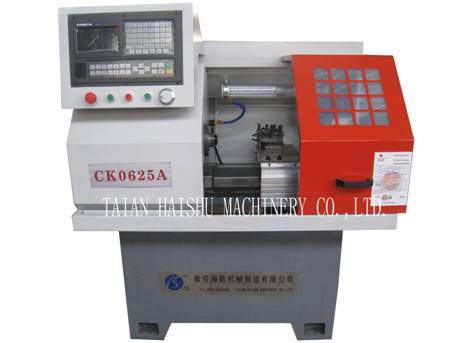

CK0625A CNC LATHE
1. Specifications
|
Items |
Specifications |
|
Max.swing over bed |
Φ160 |
|
Max.swing over carriage |
Φ60 |
|
max length of work piece |
150 |
|
Maximum diameter of the bar |
Φ25 |
|
X / Z axis repeat positioning accuracy |
0.012/0.013 |
|
X-axis max motion traveling schedule |
280 |
|
Z- axis max motion traveling schedule |
160 |
|
X-axis fast moving speed |
5 |
|
Z- axis fast moving speed |
8 |
|
Range of spindle speed |
150-3000 |
|
Turret form |
row turret |
|
Power of the main drive motor |
2.2 |
|
Overall dimensions(L×W×H) |
1480×930×1510 |
|
Net weight |
900 |
2. Characteristics
a. The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
b. Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
c. The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
d. X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
e. Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
f. Spindle with pneumatic collet chuck
3. Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
4、Standard configuration
★system：GSK928
★Pneumatic chuck ★Row knives
5、Optional configuration
★system：GSK980，KND，Siemens，Fanuc
★Manual or Power chuck ★Manual or Power tailstock ★Electric turret
