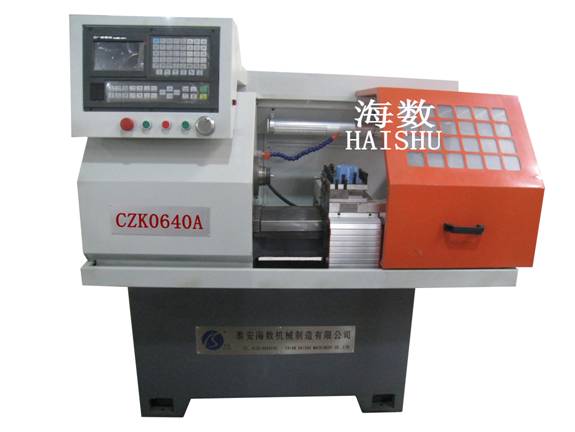

CZK0640A
CNC turning drilling tapping machine
1. Specifications
|
Items |
Specifications |
|
Max.swing over bed |
Φ280 |
|
Max.swing over carriage |
Φ100 |
|
max length of work piece |
Collet chuck200/ Three-jaw chuck120 |
|
Spindle head form |
A2-5 |
|
Spindle bore |
Φ48 |
|
Trombone bore |
Φ40 |
|
X / Z axis repeat positioning accuracy |
0.012/0.013 |
|
X-axis max motion traveling schedule |
260 |
|
Z- axis max motion traveling schedule |
240 |
|
X-axis fast moving speed |
5 |
|
Z- axis fast moving speed |
8 |
|
Range of spindle speed |
150-2200 |
|
Turret form |
4 station turret / row turret optional |
|
Power of the main drive motor |
3 |
|
Overall dimensions(L×W×H) |
1600×1000×1550 |
|
Net weight |
1000 |
2. Characteristics
◆with turning, drilling, tapping functions;
◆the spindle motor servo reversing speed;
◆spindle power synchronous belt drive;
◆pneumatic chucks;
◆Z-axis screw in the center of the guide rail
◆Z-axis guide fully enclosed protection.
3. Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
4、Standard configuration
★system：GSK928
★Pneumatic chuck
★Row knives
5、Optional configuration
★system：GSK980，KND，Siemens，Fanuc
★Manual or Power chuck
★Manual or Power tailstock
★Electric turret
