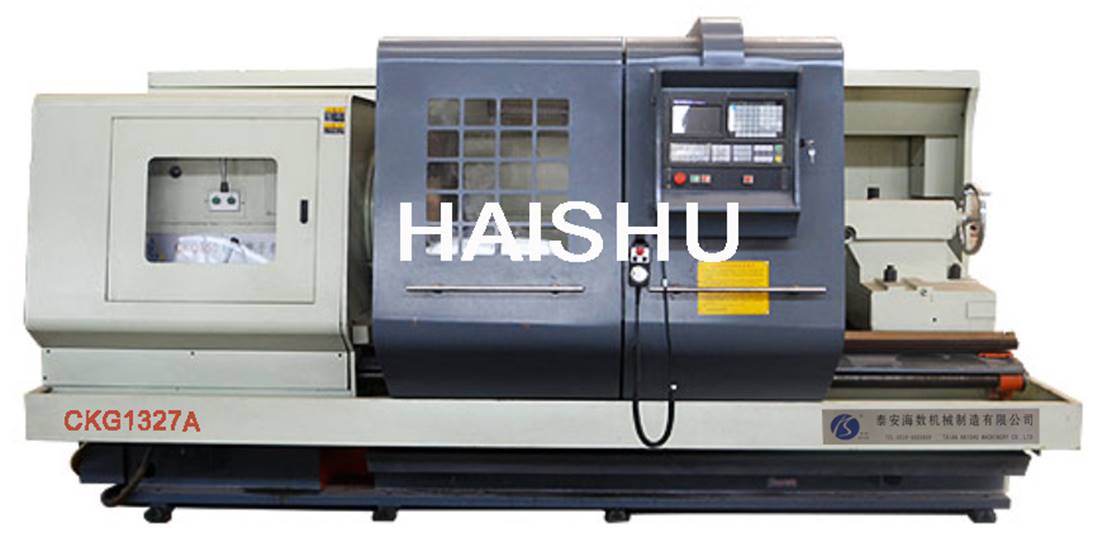

CKG1327A CNC pipe threading lathe
|
No. |
Item |
Unit |
parameter |
|
1 |
Max. turning diameter over bed |
mm |
φ800 |
|
2 |
Spindle hole diameter |
mm |
φ280 |
|
3 |
Machining diameter of the pipe |
mm |
70-273 |
|
4 |
Max. workpiece length |
mm |
1000、1500、3000、4000 |
|
5 |
Max. machining taper |
1:40 | |
|
6 |
Max.taper rod stroke |
mm |
930 |
|
7 |
Number of spindle speeds |
9 | |
|
8 |
Spindle speed range |
r/min |
77-230 |
|
9 |
Longitudinal feed amount number and range |
32kinds/0.07-1.33mm | |
|
10 |
Cross feed amount number and range |
32kinds/0.02-0.45mm | |
|
11 |
Processing metric thread number and range |
21kinds/1-15mm | |
|
12 |
Processing Inch thread number and range |
26kinds/1-14/inch | |
|
13 |
Fast moving speed of the saddle |
mm/min |
2500 |
|
14 |
Small turret stroke |
mm |
210 |
|
15 |
Tool-sectional dimension |
mm |
30×30 |
|
16 |
Toolholder turntable rotation angle |
±90° | |
|
17 |
Small turret dial a cell stroke |
mm |
0.05 |
|
18 |
Lower slide dial a cell stroke |
mm |
0.05 |
|
19 |
Diameter of top sleeve |
mm |
100 |
|
20 |
Taper of top sleeve |
莫氏6# | |
|
21 |
Stroke of top sleeve |
mm |
250 |
|
22 |
Tailstock cross travel |
mm |
±15 |
|
23 |
Top taper |
莫氏6# | |
|
24 |
Gear belt |
1-A800 | |
|
25 |
Main motor belt |
B1700 | |
|
26 |
Gear pump |
CB-B6 2.5mPA | |
|
27 |
Fast motor |
2AOS5632/0.37kW | |
|
28 |
Chuck stepping motor |
1.5kW/2860r/min | |
|
29 |
Fast motor |
Y180M-4/15KW/1460r/min | |
|
30 |
size（L×W×H） |
mm |
3853×1540×1630 |
|
31 |
weight |
kg |
7600 |
Standard configuration
◆ CNC system: GSK980
◆ Double electric four-jaw chuck
◆ Four-position electric turret
Select Configuration
◆ CNC system: KND，Siemens, Fanuc
◆ six-station, eight-station electric turret
