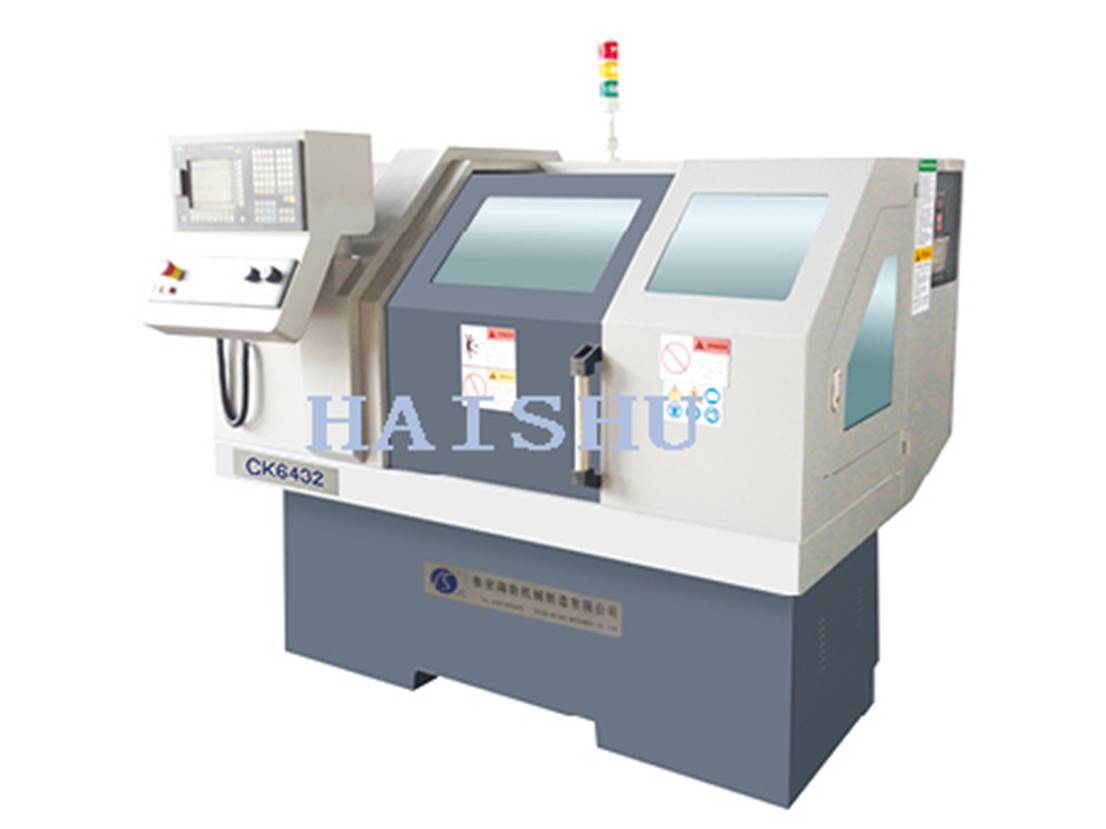

CK6432 CNC Lathe
Standard configuration:
◆CNC system:KND,
◆Manual chuck ,
◆Manual tailstock,
◆Vertical four-station electric turret,
◆Automatic lubrication system,
◆Turning the cooling system.
◆Machine casing is full protection
Select configure
◆CNC system: GSK, Siemens, Fanuc, etc.,
◆Servo main motor,
◆Hydraulic chuck (solid and hollow), pneumatic chuck, manual collet, pneumatic collet;
◆Hydraulic tailstock, pneumatic tailstock,
◆Automatic feeder,
◆Horizontal 6/8-station turret, tool row.
|
Items |
Unit |
Specifications |
|
Max. rotation diameter over bed |
mm |
φ360 |
|
Max.rotation diameter over pallet |
mm |
φ150 |
|
Max. workpiece length |
mm |
500/750 |
|
Rail width |
mm |
260 |
|
Spindle nose |
A2-6 | |
|
Taper of spindle bore |
mm |
MT6 |
|
Main drive form |
Independent spindle | |
|
Spindle speed mode |
Frequency stepless speed | |
|
Spindle speed range |
r/min |
150-2500 |
|
Spindle bore |
mm |
φ60 |
|
Chuck diameter |
mm |
φ200（8＂） |
|
Main motor power |
kw |
3.7 |
|
Coolant pump power |
w |
120 |
|
Turret maximum stroke |
mm |
X：350 Z：500/750 |
|
Fast-moving feed |
mm/min |
X：4000 Z：7000 |
|
repeat positioning accuracy |
mm |
X：0.01 Z：0.015 |
|
Workpiece accuracy |
IT6-IT7 | |
|
Workpiece surface roughness |
Ra1.6 | |
|
Tailstock quill diameter |
mm |
φ50 |
|
Tailstock quill stroke |
mm |
100 |
|
Tailstock quill taper |
MT4 | |
|
repeat positioning accuracy |
mm |
0.008 |
|
Arbor section |
mm |
20×20 |
|
Overall dimensions(L×W×H) |
mm |
1740/2000×1210×1650 |
|
Net weight |
kg |
1275/1450 |
