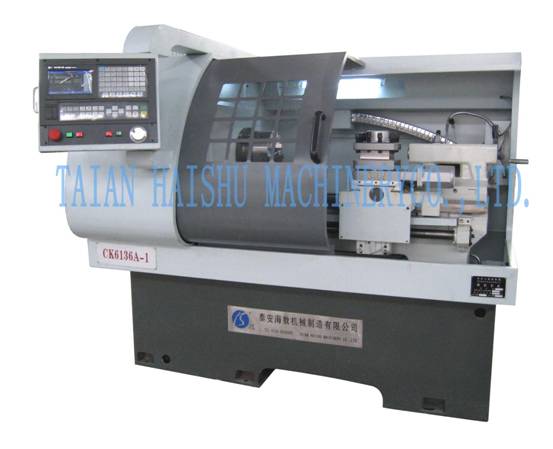

CK6136A-1×650 CNC LATHE
1. Technical parameters
|
items |
parameters |
|
Maximum workpiece swing diameter over bed |
Φ360mm |
|
Dragged on board the maximum workpiece swing diameter |
Φ210mm |
|
Maximum length of workpiece |
650mm |
|
Range of spindle speeds |
150-2000rpm |
|
Spindle bore diameter |
Φ60mm |
|
Taper of spindle bore |
MT6 |
|
Turret Number of tool |
4/6/ 8/or row of knife |
|
Tool cross-section specifications |
20mm×20mm |
|
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
|
Arbor fast forward speed |
Z: 8 m/min , X: 6 m/min |
|
Tailstock quill taper |
MT4 |
|
Tailstock quill maximum moving distance |
120mm |
|
Power of main motor |
4KW |
|
The lathe Dimensions (L × W × H) |
2050 mm×1400 mm×1650mm |
|
Lathe Net |
1700kg |
2. main features
(1) Spindle bore increase (φ60mm), increase the diameter of the workpiece rotation (with φ200mm chuck).
(2) Cast iron as a whole foot of the bed, the bed weight, strong rigidity, good stability.
(3) Independent spindle frequency stepless speed regulation, low noise, small vibration, high precision machining, energy saving and environmental protection.
(4) Spindle with high speed and high precision bearings, processing performance and stability, good surface finish, high processing efficiency.
(5) Bed rail VHF hardening, saddle and skateboard rail combines surface laminating, to reduce friction loss, prevent crawling, and can be micro feed.
3. Configuration
(1) Control system optional: Guangshu's GSK, Beijing's KND, Germany's Siemens, Japan's Fanuc, etc..
(2) Chuck optional: manual, pneumatic or hydraulic chuck, manual or pneumatic collet first class.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four horizontal six rows of knives and so on.
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for steel, Iron Castings, non-ferrous metal precision machining and rapid processing.
