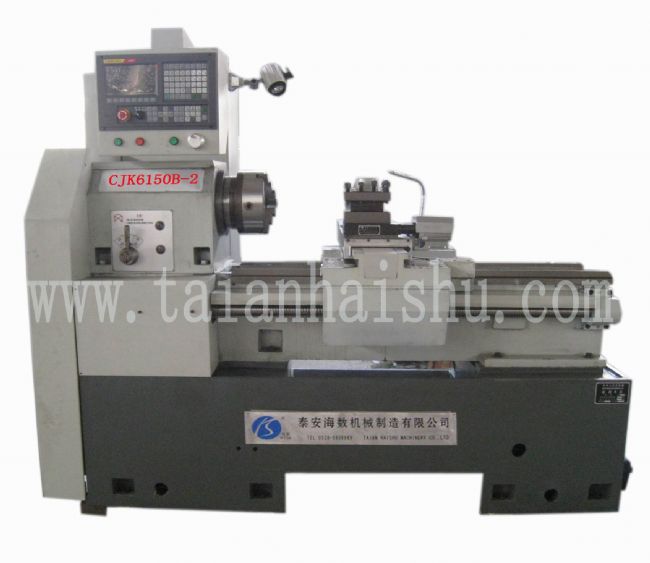

CJK6150B-2×750/1270 economical cnc lathe machine
1.Technical parameters
|
Project |
Technical parameters |
|
Maximum swing diameter over bed parts |
Φ500mm |
|
Diameter of the largest pallet |
Φ290mm |
|
Maximum length of workpiece |
750/1270mm |
|
Spindle speed range |
20~100，100~550，400~1600 rpm |
|
Diameter of Spindle Bore |
Φ82mm |
|
Guide width |
400mm |
|
Structure of the spindle nose |
D8 |
|
Front spindle taper hole |
Metric system 1：20 |
|
Turret tool stations |
|
|
Tool cross-section specifications |
25mm×25mm |
|
Motor minimum unit |
(Z) Longitudinal 0.001mm，(X) Horizontal 0.001mm |
|
Arbor fast forward speed |
(Z) Longitudinal 10m/min， (X) Horizontal 8m/min |
|
Taper of tailstock sleeve |
MT5 |
|
Maximum moving distance of tailstock sleeve |
150mm |
|
Power of main motor |
7.5KW |
|
Lathe Dimension (L × W × H) |
2600/2850/3350 mm×1300mm×1750mm |
|
Lathe weight |
2600/2800kg |
2.Features
1. 3 gears conversion stepless speed regulation, with independent variable speed spindle and gear the comprehensive advantages of turning torque, wide speed range, high efficiency, high precision, energy saving.
2. Spindle diameter increased φ82mm。
3. Bed width 400mm
4. High Quanlity & Reasonable Price, economicalandpractical
3.Uses
uses for steel, cast iron and other coarse materials, vehicles and precision machining.
